Zooming range of   objectives

0.65x-4.5x,   ratio 1:7

Eyepieces

SWF10x/23mm

Working distance

103mm

Interpupillary

distance adjustment

52-75mm

Viewing head

inclination of   45°or 60°, 360°rotatable, binocular or trinocular

Diopter   adjustment

±5 diopter

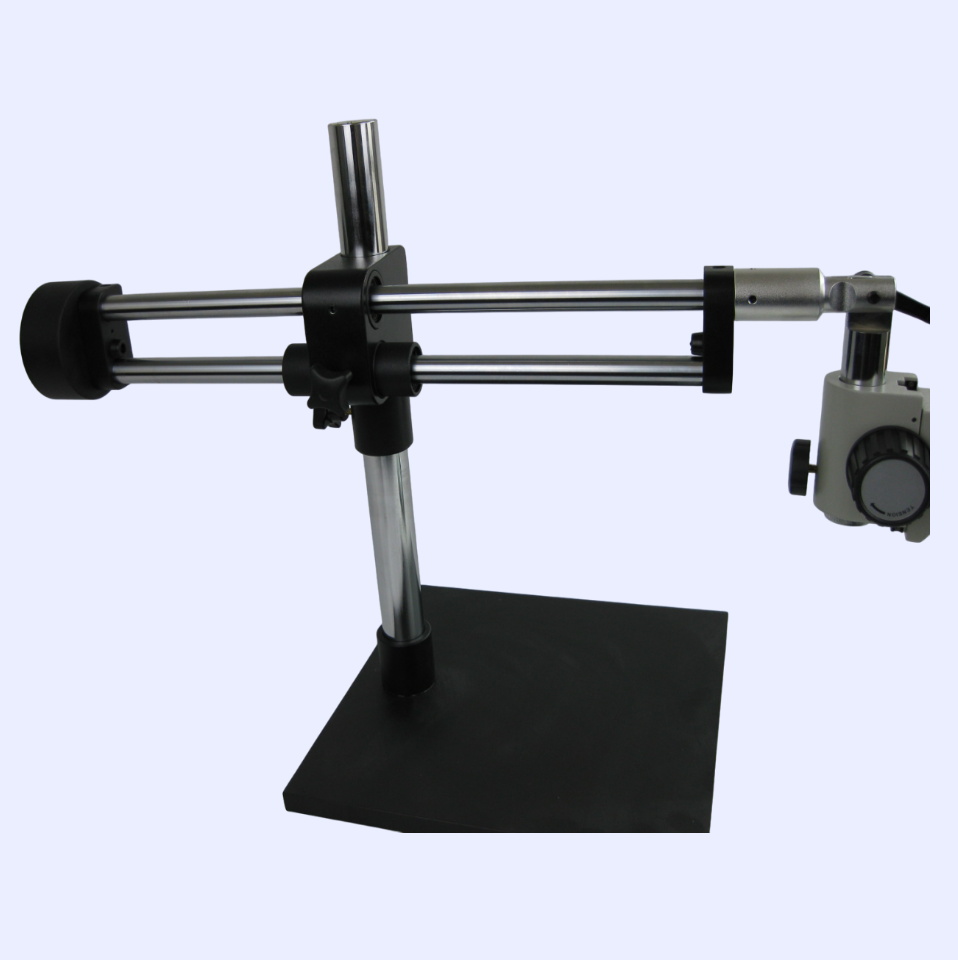

Model V8, vertical pole (Dia. 38mm, height 420mm),   horizontal dual bars

(Dia. 20mm, length 500mm),

ball bearing built in couple   provides smooth horizontal direction sliding

movement), base plate   (255x255x40mm or U type clamp base)

Optional   eyepieces

WF5x, WF15x,   WF20x, WF25x

Optional barlow lens

0.4x, 0.5x,   0.75x, 1x, 1.5x, 2x,

Optional   accessories

XY moving   working stages, rotatable working stages, tiltable working stage,

LED ring lights,   CCD or CMOS camera,   specimen holder
